They come in sizes ranging from module 1 to module 8, pitch from 4 to 12.

- 1 module to 8 module , pitch 4 to 12

- Range of tooth sizes from 12 to 48

- Tooth Spur Gears up to 800mm diameter

1. By transmission ratio

According to whether the transmission ratio of a pair of gears is constant, it can be divided into fixed transmission ratio gear transmission and variable transmission ratio gear transmission. The gear in gear transmission mechanism with variable transmission ratio is generally non-circular, so it is also called non-circular gear transmission. It is mainly used in some machinery with special requirements. The gears in the gear transmission mechanism with fixed transmission ratio are all round, so they are also called circular gear transmission.

2. According to profile shape

3. According to working conditions

Gear transmissions can be classified as closed, open, or semi-open according on the various operating circumstances under which they operate. The semi-open gear drive operates better than the open gear drive because its teeth are not as exposed to dust and are more likely to fall on them. On the other hand, the gear teeth in a closed gear transmission are enclosed in a box, which can guarantee good working conditions and is widely used. Even with a basic protective cover and partial submersion in the pumping pool, foreign objects continue to infiltrate the large gear.

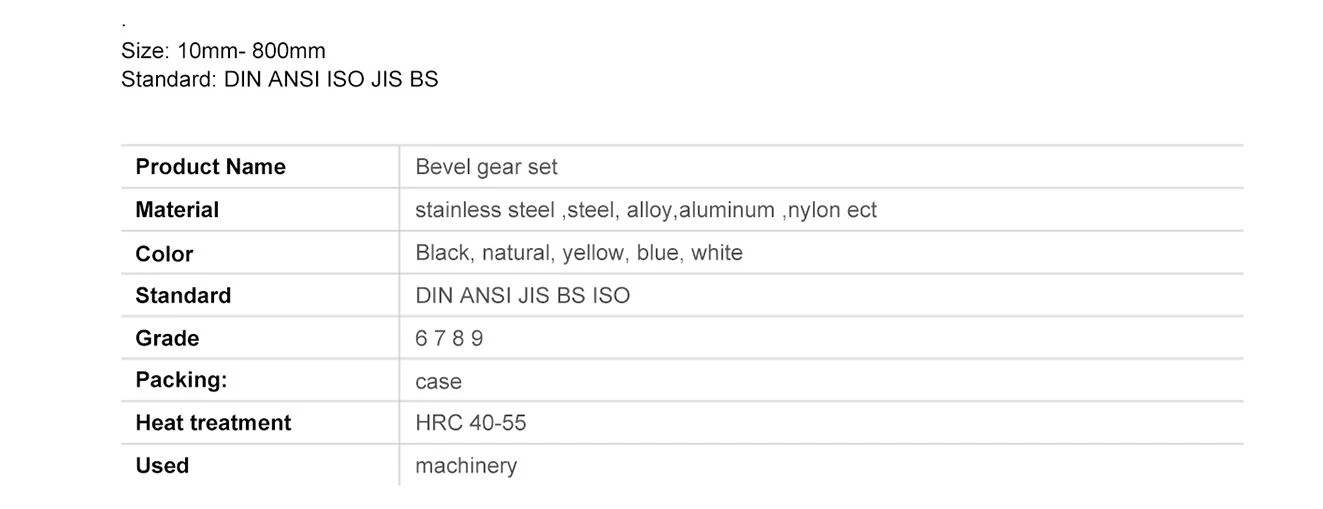

Bevel Gear Sets are only suitable for 1.5 module gears, 16 teeth, 90 degrees, 12mm aperture.
The bevel gear set is equipped with two M5 screws, which is simple and convenient to use. The contact ratio between gears is relatively low and the load capacity is high.
The bevel gear is made of 45# steel, which has high wear resistance and is strong and durable.
Please note that this 1:1 bevel gear can only be used with 1:1 gears and cannot be matched with other tooth modules.
